Photo Eyes

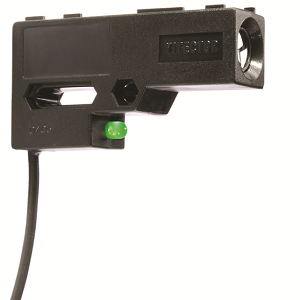

RAY-S 1100

VITECTOR Measuring Tools & Sensors Mounting Hole, 3-Wire OSE, 1.5 ... 10 m (4.9 ... 32.8 ft), 5 ... 28 V DC, , 10.5 m (34 ft), EN 12978 Available 0
General Data
TechnologyPull-In Protection
ApplicationPull-In Protection
Interface3-Wire OSE
Operation Range1.5 ... 10 m (4.9 ... 32.8 ft)
Supply Voltage5 ... 28 V DC
CertificationEN 12978
MountingMounting Hole
Connection Cable10.5 m (34 ft)
Protection ClassIP54
Operation Temperature-20 ... +55 °C (-4 ... +131 °F)
Power Consumption60 mA max.
Response Time32 ms
Housing MaterialABS black
Aperture AngleTx/Rx ≤ ±5°
Safety PropertiesSafety Category 3, PL c (combined with OSE-C 2323/2324)
RemarksMounting Hole
Unit of MeasurePiece


Compatible Controllers
 ProductSupply VoltageInput Type of Sensing Edge
OSE-C 232424 V AC/DC3-Wire
OSE-C 2300230 V AC3-Wire
OSE-C 230124 V DC3-Wire
OSE-C 2323230 V AC3-Wire

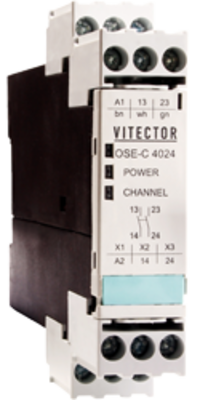

OSE-C 402424 V DC3-Wire
OSE-C 502424 V AC/DC3-Wire

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
