Control Unit
OSE-C 4024
VITECTOR Measuring Tools & Sensors DIN Rail Mounting, 24 V DC, 1, 3-Wire, , Safety Cat. 4 PL e (EN 13849-1), Relay NCC, , Signalling Output Available 0
| General Technical Data | |
| Housing Type | DIN Rail Mounting |
| Input Type of Sensing Edge | 3-Wire |
| Outputs | Relay NCC |
| Additional Outputs | Signalling Output |
| Supply Voltage | 24 V DC |
| Operation Temperature | +5 °C to +55 °C (41 °F to 131 °F) |
| Weight | 0.2 kg |
| Housing Material | Polyethylene |
| Protection Class | Housing IP40, Terminal Block IP20 |
| Housing Dimensions | 22.5x100x120 mm (0.89x3.94x4.72") |
| Power Consumption | 4 VA |
| Cyclic Duration Factor | 100% |
| Number of Optical Sensing Edge Inputs | 1 |
| Safety Properties | |
| Safety Properties | Safety Cat. 4 PL e (EN 13849-1) |
| MTTFd | 100 years |
| Diagnostic Coverage DC | 99 % |
| Sensing Edge Output | |
| Output Type | NCC Relay |
| Contact Material | Hard Silver, AgNi |
| Max. Switching Voltage | 250 V AC/DC |
| Max. Switching Current | 4 A |
| Max. Switching Capacity | 1000 VA |
| Fusing | 4 A slow acting |
| Signalling Output | |
| Output Type | Semiconductor Output (PNP open collector) |
| Current / Voltage | U max. = 36 V, I max. = 50 mA |
| Unit of Measure | Piece |
| Product Life Cycle | Established |

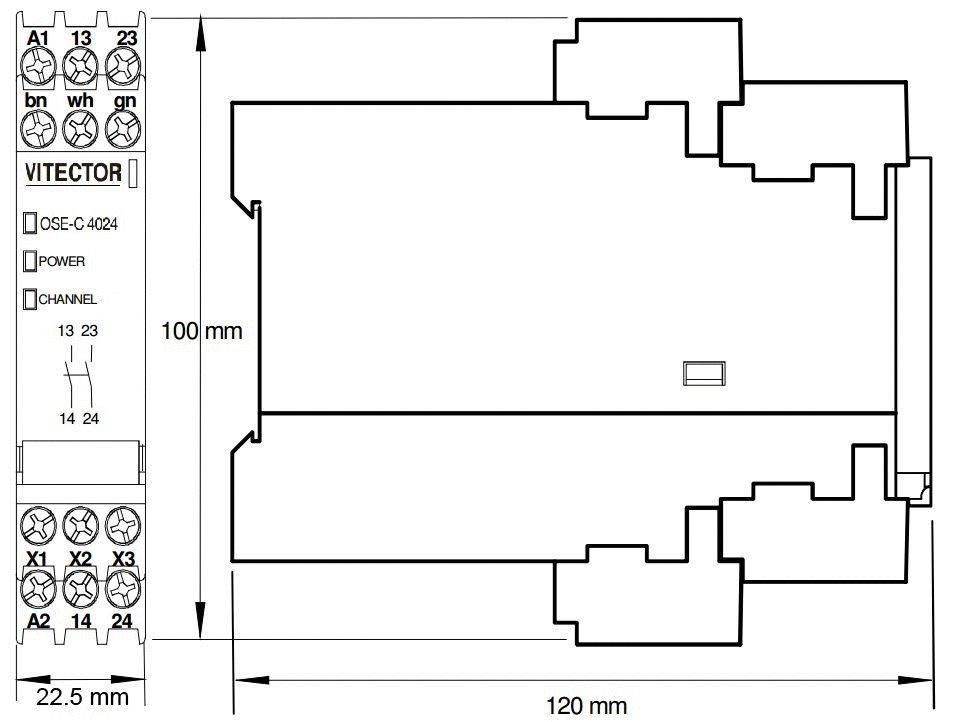

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
