Control Unit
OSE-C 5024
VITECTOR Measuring Tools & Sensors DIN Rail Mounting, 24 V AC/DC, 4, 3-Wire, , Safety Cat. 3 PL d (EN 13849-1), Relay NCC, , Signalling Output Available 0General Technical Data | |||
Housing Type | DIN Rail Mounting | ||
Input Type of Sensing Edge | 3-Wire | ||
Outputs | Relay NCC | ||
Additional Outputs | Signalling Output | ||
Supply Voltage | 24 V AC/DC | ||
Operation Temperature | -10 °C to +55 °C (14 °F to 131 °F) | ||
Weight | 0.15 kg | ||
Housing Material | Polyethylene | ||
Protection Class | Housing IP40, Terminal Block IP20 | ||
Housing Dimensions | 22.5x100x120 mm (0.89x3.94x4.72") | ||
Power Consumption | 4 VA | ||
Cyclic Duration Factor | 100% | ||
Number of Optical Sensing Edge Inputs | 4 |
Safety Properties | |||
Safety Properties | Safety Cat. 3 PL d (EN 13849-1) | ||
MTTFd | 100 years | ||
Diagnostic Coverage DC | 84 % |
Sensing Edge Output | |||
Output Type | NCC Relay | ||
Contact Material | Hard Silver, Ag Ni 10 + 0,2 μm Au | ||
Max. Switching Voltage | 250 V AC / 60 V DC | ||
Max. Switching Current | 2 A | ||
Max. Switching Capacity | 1500 VA; AC15: 230 V / 3 A; DC13: 24 V / 4 A | ||
Mechanical Service Life | > 10^7 operating cycles | ||
Fusing | 2 A slow acting |
Signalling Output | |
Output Type | Semiconductor Output (PNP open collector) |
Current / Voltage | UX1=Ub-1V, I max. = 50 mA |
Unit of Measure | Piece |
Product Life Cycle | Established |
Compatible Ose Sensors
Product | T Cable Length | R Cable Length | |
OPC-S 4501 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) | |
OSE-S 1100 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) | |
OSE-S 1102 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) | |
OSE-S 1171 | 10.5 m (34.4 ft) | 10.5 m (34.4 ft) | |
OSE-S 1172 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) | |
OSE-S 1500 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) | |
OSE-S 1501 | 6.5 m (21.3 ft) | 3.0 m (9.8 ft) | |
OSE-S 1502 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) | |
OSE-S 1508 | 10.5 m (34.4 ft) | 0.5 m (1.6 ft) |

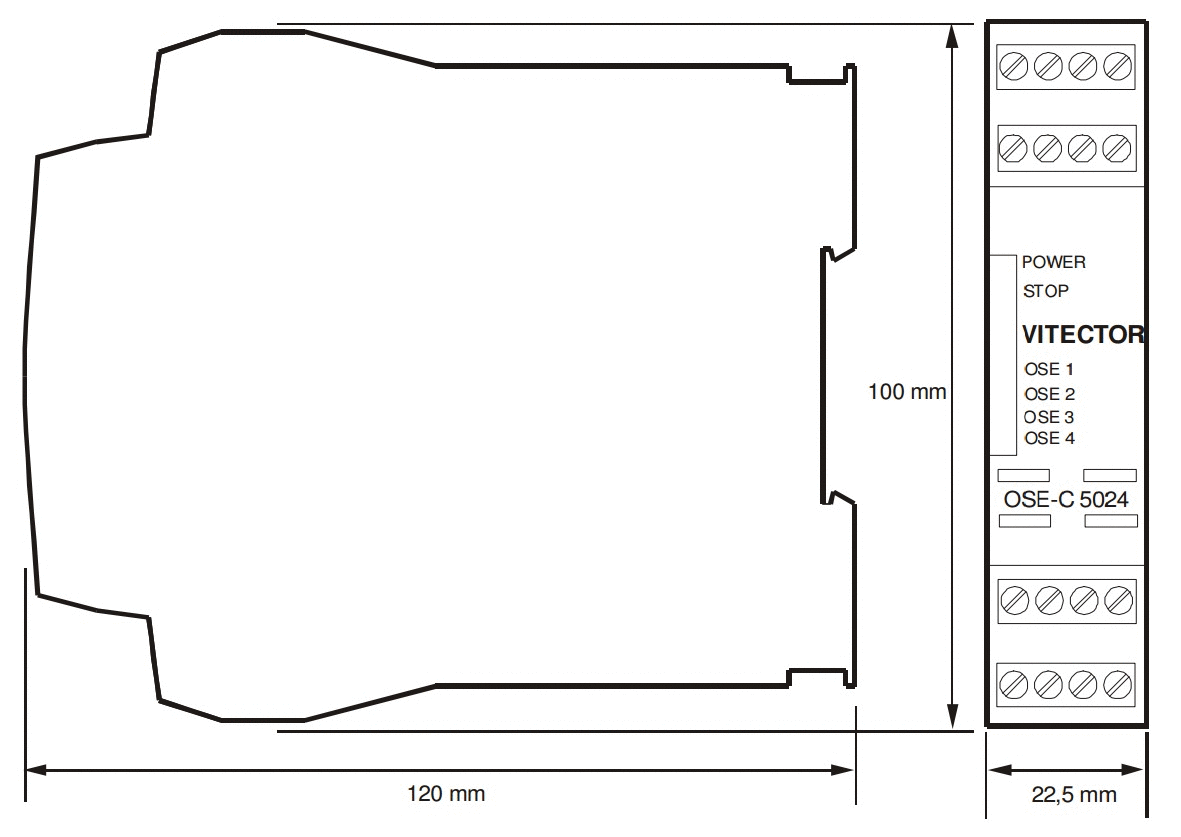

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
© CEDES AG., All rights reserved. We do not assume responsibility for technical inaccuracies or omissions. Specifications are subject to change without notice.
