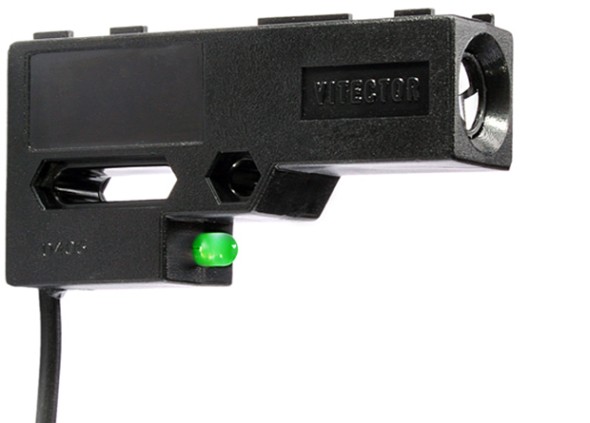

Safety photo eye
RAY
The safety photo eye is used for entrapment protection on industrial doors, mainly for rolling grills.
An interruption of the light beam initiates a signal between transmitter and receiver which interrupts the movement of the power operated gate. The pull-in protection RAYTECTOR is suitable for absolute fitting dimensions between 1.5 to 10.5 m.
Transmitter and receiver are inserted in com-pound-filled plastic housings. The respective 10.5 m length of the connector cables allow the direct connection to the control unit.
Features
- Compatible with OPTOEDGE safety edge
- Front-side indicator LED
- Mounting angle for easy adjustment
- Operating range 1.5 m – 10 m
- 10.5 m connection cable
- Protection class IP68
