Reflective Photo Eye
RAY-RT
With its adaptable design, RAY-RT can be installed in the most challenging locations of door and gate construction. It is designed for securing various points of the door and due to its compact size it can even be integrated in the guide rail.
RAY-RT is available in 2 different output versions typical for the door and gate industry (relay and 2-wire pulsed signal). Added safety is achieved by an optional self-test input for the relay version. RAY-RT is also offered with 3 different housings (Standard, Industrial, and Heavy Duty).
Features
- Available with either a standard or long-range reflector
- Resistant to ambient light through red light technology
- Close Range Detection (see Triangulation feature )
- Available output versions: relay, pulsed 2-wire
- IP65 [NEMA 4X]
- LED indicator

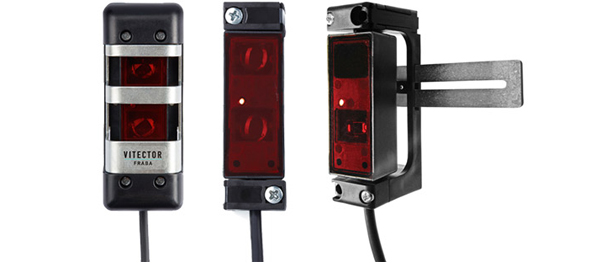

Standard Version
- Economical and Compact Housing
- Adjustable: 360° Horizontally and ±2° Vertically
Industrial Version
- Versatile: Track-mount and Backwards-facing Mount
- Industrial Housing
- Adjustable: 180° Horizontally and ± 2° Vertically
Heavy Duty Version
- Heavy Duty Housing
- Shield for Impact Resistance
- UL 325 Recognized Option
- Adjustable: 180° Horizontally and ± 2° Vertically
