Optical Sensing Edge

OSE-S 6618

VITECTOR Measuring Tools & Sensors 3 wire OSE, Optical Contact Edge, 8.5 m (27.9 ft), 0.5 m (1.6 ft), , 4 - 28 V DC, Cat. 3 PL d (EN ISO 13849-1), , PVC / PVC, with connector Available 0
General Data
Interface3 wire OSE
TechnologyOptical Contact Edge
Transmitter Cable Length8.5 m (27.9 ft)
Receiver Cable Length0.5 m (1.6 ft)
Supply Voltage4 - 28 V DC
Safety PropertiesCat. 3 PL d (EN ISO 13849-1)
MTTFd100 years
DCav90%
PFHd4.6*10^-8 / h
Maximum Operation Period20 years
Housing Dimensions WxHxD37x11 mm (1.46x0.43")
Operation Temperature-20 °C to +75 °C (-4 °F to +167 °F)
Protection ClassIP68
Cable LayoutPVC / PVC, with connector
VersionV6 (suitable for battery systems)
Diameter11 mm (0.43 ")
Weight0.11 kg
Range0.5 m - 10 m (1.6 ft - 32.8 ft)
Sealing CompoundPolyurethane (Transmitter: Grey, Receiver: Black)
Housing MaterialPolyethylene
Unit of MeasurePiece
Product Life CycleEstablished


Compatible Rubber Profiles
 ProductHeightWidth
OSE-P 14 36 0436 mm (1.42")14 mm (0.55")
OSE-P 45 60 0460 mm (2.36")45 mm (1.77")
OSE-P 20 40 0140 mm (1.57")20 mm (0.79")
OSE-P 25 90 0090 mm (3.54")25 mm (0.98")
OSE-P 25 75 0175 mm (2.95")25 mm (0.98")
OSE-P 25 75 0075 mm (2.95")25 mm (0.98")
OSE-P 14 36 0036 mm (1.42")14 mm (0.55")
OSE-P 15 40 0040 mm (1.57")15 mm (0.59")
OSE-P 45 60 0060 mm (2.36")45 mm (1.77")

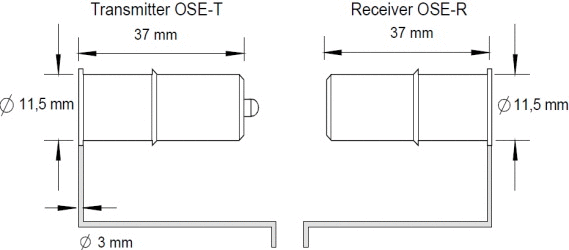

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
