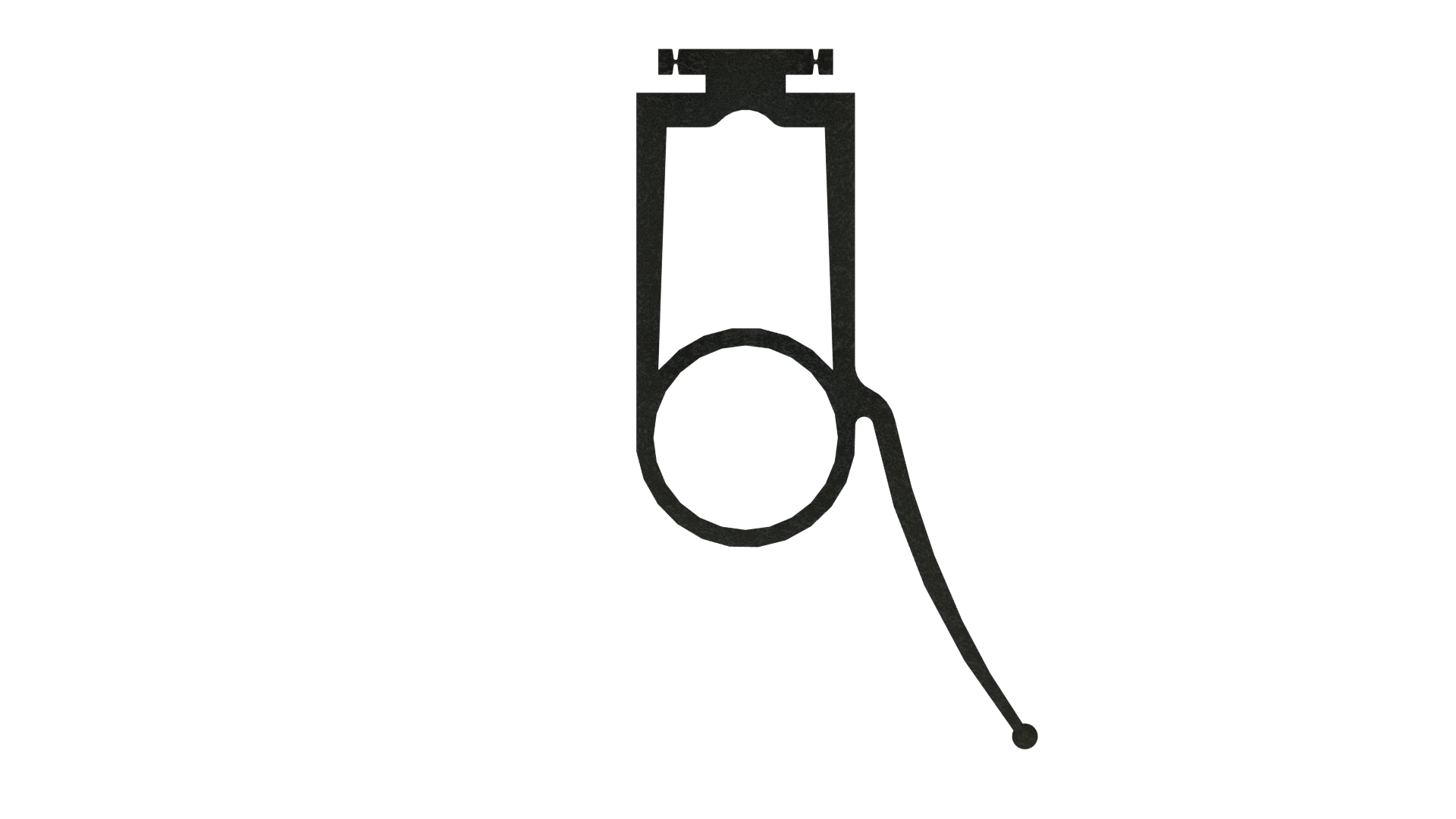

Rubber Profile
OSE-P 25 75 00
VITECTOR Measuring Tools & Sensors 75 mm (2.95"), T Foot, One, 25 mm (0.98"), , 15.8 mm / 20 mm (tear-off foot), EPDM Available 0
| General Data | |
| Height | 75 mm (2.95") |
| Foot | T Foot |
| Sealing Lip | One |
| Width | 25 mm (0.98") |
| Foot Width | 15.8 mm / 20 mm (tear-off foot) |
| Material | EPDM |
| Applicable Bumper | OSE-B 5518 |
| Hardness | 65 ± 5 Shore A |
| Operation Temperature | +5 °C to +55 °C (41 °F to 131 °F) |
| Weight | 0.7 kg/m |
| Roll Length | 30 m (98.5 ft) |
| Unit of Measure | Meter |
| Product Life Cycle | Established |
| Product | Height | Width | |
 | OSE-B 5518 | 55 mm (2.17") | 18 mm (0.71") |
| Product | Contact Type | Sensor Connector | |
 | DW RS-200 NOC/NCC | Changeover Contact | Screw Type Connector |
 | DW 2O-100 | Normally Closed Contact (NCC) | Bueschel Connector |
| DW 2S-100 | Normally Open Contact (NOC) | Bueschel Connector |
 | DW 3O-100 | Normally Closed Contact (NCC) | Screw Type Connector |
| DW 3O-100 AU | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-200 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-300 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-306 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-308 | Normally Closed Contact (NCC) | Screw Type Connector |
| DW 3S-100 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-100 AU | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-200 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-300 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-308 | Normally Open Contact (NOC) | Screw Type Connector |
 | DW 3W-220 | Changeover Contact | Screw Type Connector |
 | DW 3W-420 | Changeover Contact | Screw Type Connector |
 | DW 5O-100 | Normally Closed Contact (NCC) | 6,3 mm Flat Connector |
| DW 5S-100 | Normally Open Contact (NOC) | 6,3 mm Flat Connector |
| Product | T Cable Length | R Cable Length | |
 | OPC-S 4501 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) |
 | OSE-S 6501 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) |
| OSE-S 6502 | 10.5 m (34.4 ft) | 0.5 m (1.6 ft) |
| OSE-S 6505 | 6.5 m (21.3 ft) | 3.0 m (9.8 ft) |
| OSE-S 6506 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) |
| OSE-S 6512 | 10.5 m (34.4 ft) | 10.5 m (34.4 ft) |
| OSE-S 6517 | 6.5 m (21.3 ft) | 4.5 m (14.8 ft) |
| OSE-S 6519 | 10.5 m (34.4 ft) | 4.5 m (14.8 ft) |
| OSE-S 6600 | 0.5 m (1.6 ft) | 0.5 m (1.6 ft) |
| OSE-S 6601 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) |
| OSE-S 6602 | 10.5 m (34.4 ft) | 0.5 m (1.6 ft) |
| OSE-S 6603 | 6.5 m (21.3 ft) | 1.0 m (3.3 ft) |
| OSE-S 6604 | 10.5 m (34.4 ft) | 1.0 m (3.3 ft) |
| OSE-S 6618 | 8.5 m (27.9 ft) | 0.5 m (1.6 ft) |
 | OSE-S 6712 | 10.5 m (34.4 ft) | 10.5 m (34.4 ft) |
| OSE-S 6701 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) |
| OSE-S 6702 | 10.5 m (34.4 ft) | 0.5 m (1.6 ft) |
| OSE-S 6705 | 6.5 m (21.3 ft) | 3.0 m (9.8 ft) |
| OSE-S 6706 | 10.5 m (34.4 ft) | 3.0 m (9.8 ft) |
| OSE-S 6717 | 6.5 m (21.3 ft) | 4.5 m (14.8 ft) |
| OSE-S 6800 | 0.5 m (1.6 ft) | 0.5 m (1.6 ft) |
| OSE-S 6801 | 6.5 m (21.3 ft) | 0.5 m (1.6 ft) |
| OSE-S 6803 | 6.5 m (21.3 ft) | 1.0 m (3.3 ft) |
| OSE-S 6818 | 8.5 m (27.9 ft) | 0.5 m (1.6 ft) |
| Product | Width Inside | Width Outside | |
 | ALU-2509 | 22 mm (0.87") | 25 mm (0.98") |
