Rubber Profile

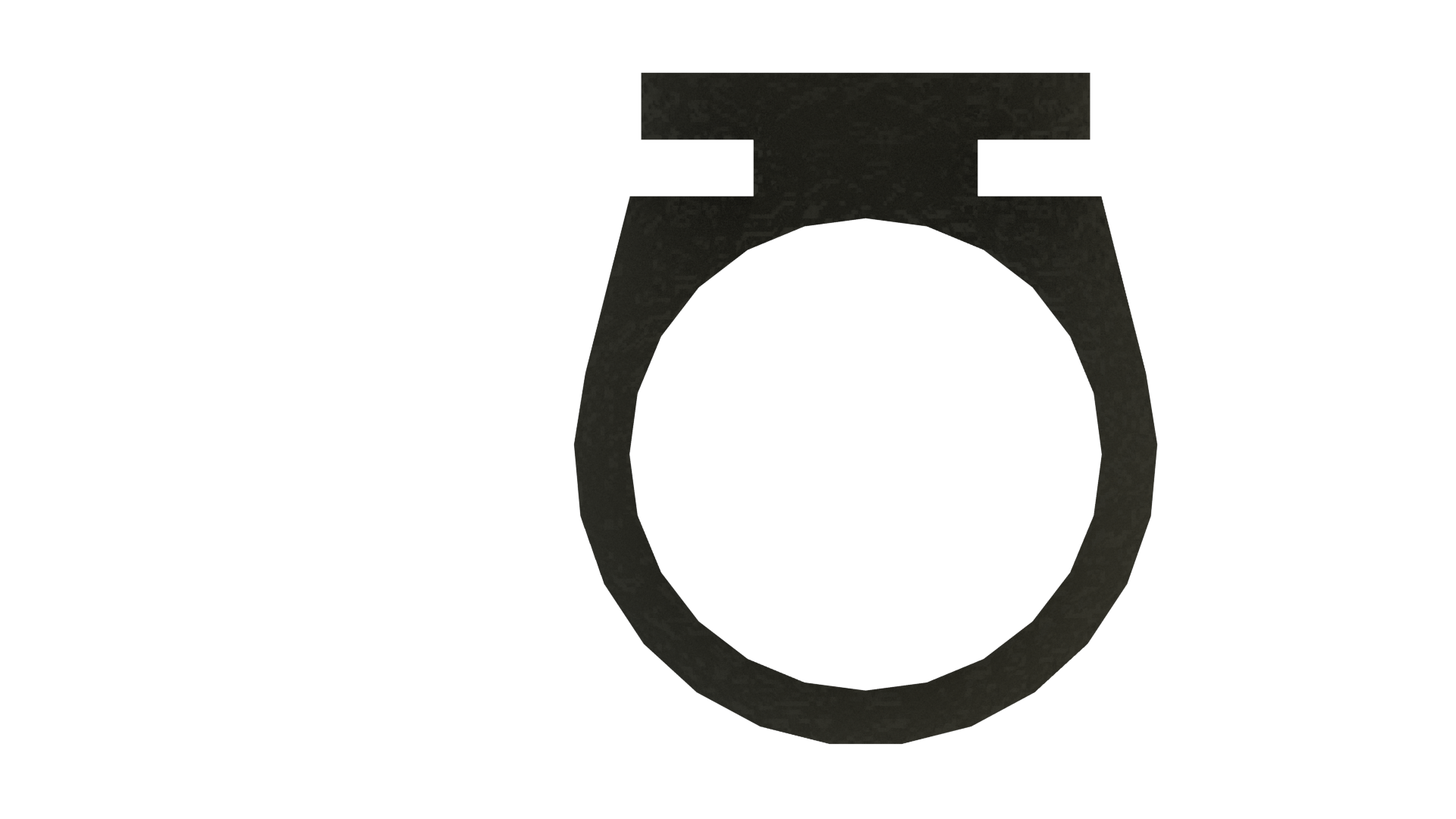

DW Profile 21 Z 58
VITECTOR Measuring Tools & Sensors 25 mm (0.98"), C Foot, None, 26 mm (1.02"), , 20 mm, NBR Available 0
| General Data | |
| Height | 25 mm (0.98") |
| Foot | C Foot |
| Sealing Lip | None |
| Width | 26 mm (1.02") |
| Foot Width | 20 mm |
| Material | NBR |
| Finger Detection | No |
| Hardness | 65 ± 5 Shore A |
| Operation Temperature | +5 °C to +55 °C (41 °F to 131 °F) |
| Weight | 0.3 kg/m |
| Roll Length | 25 m (82 ft) |
| Unit of Measure | Meter |
| Product Life Cycle | Established |
| Product | Contact Type | Sensor Connector | |
 | DW RS-200 NOC/NCC | Changeover Contact | Screw Type Connector |
 | DW 2O-100 | Normally Closed Contact (NCC) | Bueschel Connector |
| DW 2S-100 | Normally Open Contact (NOC) | Bueschel Connector |
 | DW 3O-100 | Normally Closed Contact (NCC) | Screw Type Connector |
| DW 3O-100 AU | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-200 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-300 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-306 | Normally Closed Contact (NCC) | Screw Type Connector |
 | DW 3O-308 | Normally Closed Contact (NCC) | Screw Type Connector |
| DW 3S-100 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-100 AU | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-200 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-300 | Normally Open Contact (NOC) | Screw Type Connector |
| DW 3S-308 | Normally Open Contact (NOC) | Screw Type Connector |
 | DW 3W-220 | Changeover Contact | Screw Type Connector |
 | DW 3W-420 | Changeover Contact | Screw Type Connector |
 | DW 5O-100 | Normally Closed Contact (NCC) | 6,3 mm Flat Connector |
| DW 5S-100 | Normally Open Contact (NOC) | 6,3 mm Flat Connector |
| Product | Width Inside | Width Outside | |
 | ALU-2509 | 22 mm (0.87") | 25 mm (0.98") |
