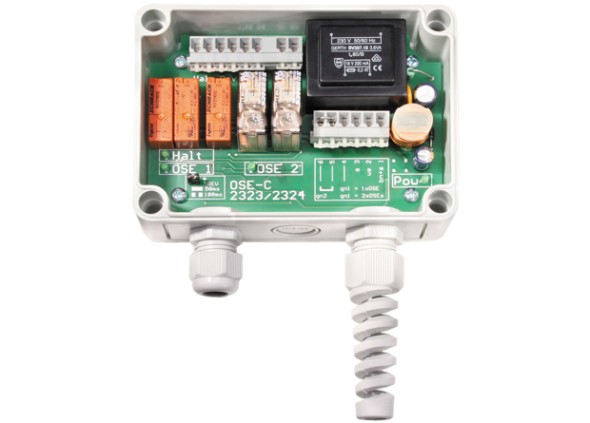

OSE-C 2323 / OSE-C 2324

c2323_2324

The relay contact 33/34 is closed, when the safety edge is not actuated. In case of an error or an actuation, the contact opens. The release contact for the safety switches (13/14) behaves likewise.

The signal created by the reverse contact is a delayed signal, which is generated 50 or 100 ms after the actuation (selectable by jumper setting) of the safety edge and lasts for 0.5 seconds. The relay contact (23/24) is open, when the safety edge is not actuated. In case of an error or an actuation, the contact closes as described above. The release signal could be used to reverse the door and thus to release the obstacle.
